Milan Lighting

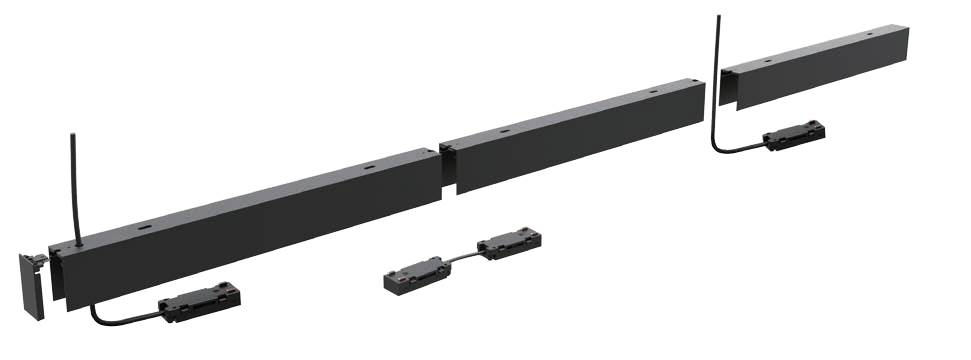

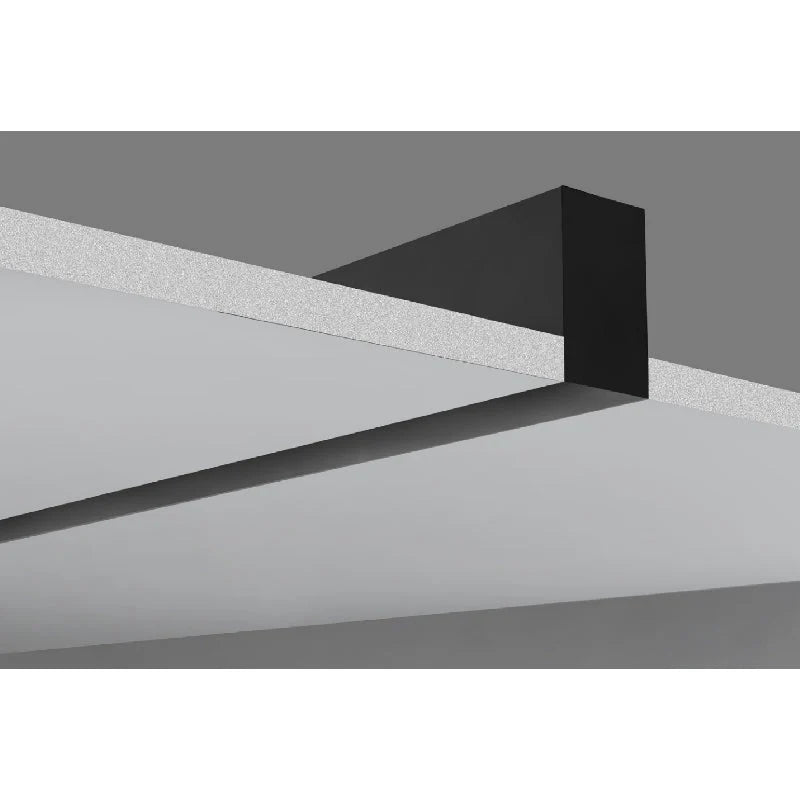

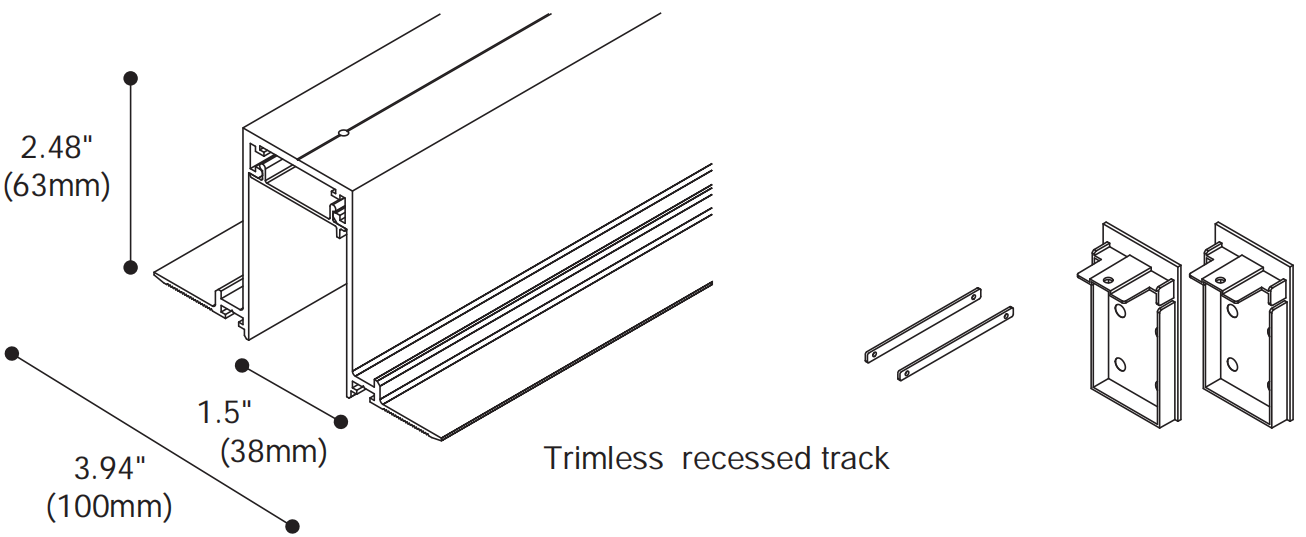

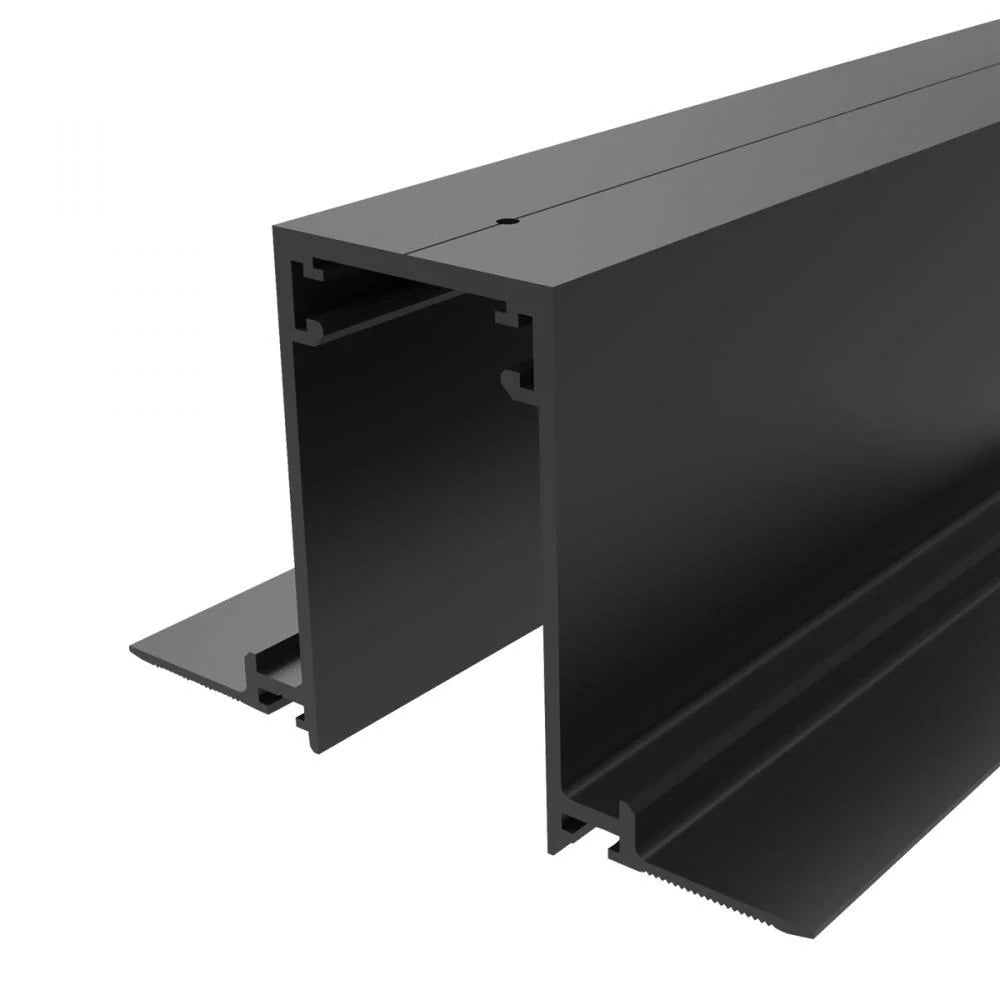

96" Trimless Recessed Track

96" Trimless Recessed Track

$183.00 USD
$183.00 USD
Sale Sold out

TK96-BK

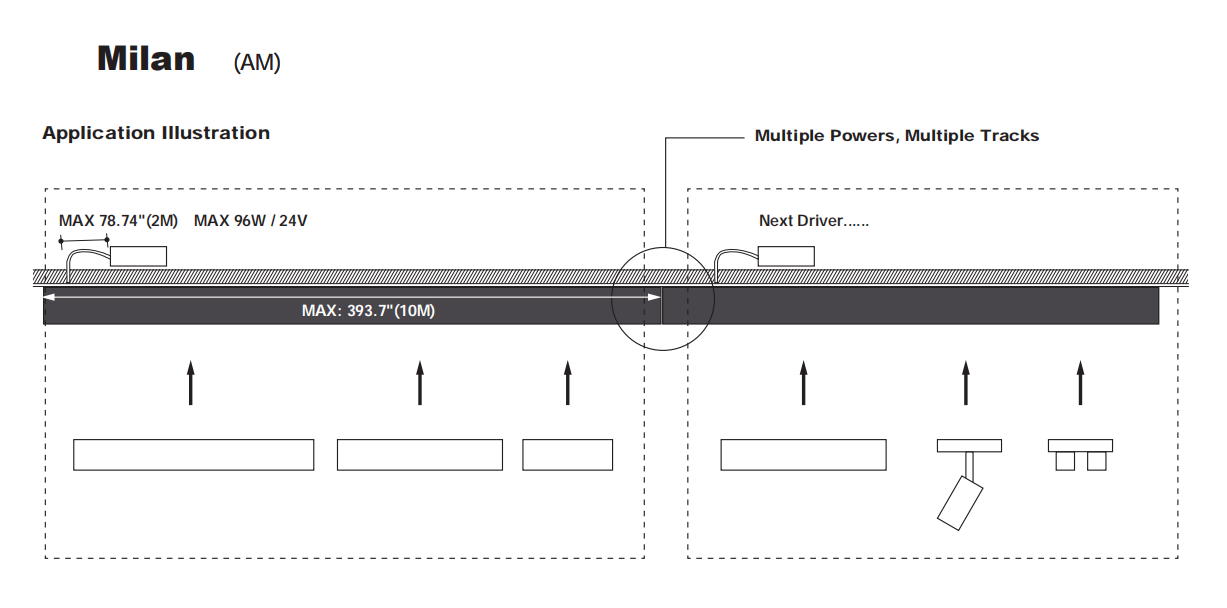

1. Max wattage linkable per loop for 24VDC is 96W.
2. Max length of track linkable per loop is 393.7"(10M ), and the max cable length between driver and track is 78.74"(2M).
3. Dimming modules are compatible to PWM dimming driver only, PWM frequency ≦1.47KHz or Universal Driver.
4. To use drivers not on recommended list , it require compatibility test before installation.
5. Tracks allows continuous linkable without limitation, also can divide into sections to light up individual area, making lighting application
easy as 123.
6. Minimum voltage per loop is 22VDC (measure at the end of the loop), under 22VDC per loop might cause abnormal.
7. Calculating max wattage connection, save 20% buffer for linear modules, and 25% buffer for other modules.
8. Use driver not in the recommended list might cause module flickering, unstable dimming and/or noise, even causing module failure.
9. When multiple drivers are use in the connection, make sure the connector without circuit is used to divide the loop.
10. When installation tracks (pipes), make sure measuring the voltage from TKPF-BK / TKI10-BK with the driver connected first,
without modules, to see if the voltage is 24VDC, then measure the track & TKPF-BK / TKI10-BK to see if the voltage drop is ≦
0.1V, if the voltage drop is over 0.1V, make sure the connector is secured properly, warpage is not allowed in the connection, also
check the cleanliness of the copper connector, copper connector can be cleaned using alcohol.
11. Use only with class 2 power unit.

*Cuttable
